浙江嘉善金昌电子有限公司

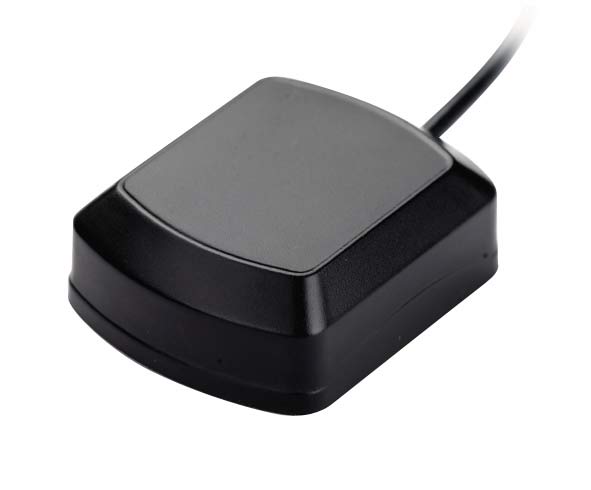

SPECIFICATION Size: 43x33x14mm Dieletric Antenna Center Frequency 1575.42 MHz±3 MHz V.S.W.R 1.5 : 1 Band Width ±5 MHz Impendence 50 ohm Polarization Type RHCP LNA / Filter LNA Gain(Without cable) 28±2 dB Typical Noise Figure 1.5 dB DC Voltage 2.2~5 V DC current 5~15 mA Cable RG174 5m / 3m / or others Connector SMA / SMB / MCX / or others Housing Black or others Working Temp -40℃~+85℃ Humidity 55%~75%RH Waterproof IP67
